Knowing the steps to steps to turning off the power to your home is pivotal. It's one of those essential skills that you will eventually have to practice. In fact, it's specifically indispensable when doing electrical repairs, during storms, or if an emergency arises. You need to be aware of how to turn off the electricity safely to help keep you and others in your household safe from power-related shock. The article focuses on the methods used in Canada, discussing circuit breaker content, fuses, safety measures taken, step-by-step procedures, and more.
First Know The Difference Between Circuit Breakers & Fuses
Before getting into motion, there is a highly critical differentiation that needs to be sorted between circuit breakers and fuses. Both will protect an electrical circuit from overload or short circuit by opening to stop electricity from flowing.
Circuit Breakers: These are the newer electrical safety devices and can be found in most Canadian homes. A circuit breaker uses a switch mechanism that trips, automatically opening and thereby cutting off electrical flow in the case of an overload or short circuit. Once the problem has been resolved, circuit breakers can then easily be reset just by switching back into the "ON" position. They generally are more convenient and safer since they do not have to be replaced every time they trip.
Fuses: These are found in older homes and provide similar protection but operate differently. Each fuse has a metal filament. This element melts when it gets too hot due to excessive current flow, which breaks the circuit. Each time a fuse blows, it has to be replaced, which is comparable to a circuit breaker just being reset. Most fuse panels contain screw-in fuses for individual circuits and cartridge fuses for the main disconnect.
What Are The Safety Considerations To Observe?
Electricity can be dangerous; hence, ensure that you are safe. Even when just turning off the power, there are some safety considerations to observe.
- Protective Gear: Always wear rubber-soled shoes and ensure your hands are dry before touching the electrical panel. Water conducts electricity; thus, any moisture will increase the risk of electric shock.
- Use the Right Tools: Always use insulated devices if possible. The non-contact voltage testers are pretty helpful in confirming whether there is any power before starting your work.
- Keep the Area Dry: The floor space around your electrical panel should be dry. If it's wet, do not proceed but dry the area thoroughly before coming near the panel.
- Note That the Main Breaker Does Not Cut All Power: Turning off your main breaker and main disconnect fuse does not remove the power from the utility lines into your home. It is energized until the utility company cuts the utility lines. Stay clear of lines entering the panel or their connections.
- One Hand Rule: Always use one hand near live circuit components. This way, your body will not be a path for electricity. Keep the other hand and arm entirely out of the panel and clear of any grounded surface.
- Proper Lighting: Ensure adequate lighting in the area over the panel on which you'll be working. If it is dark in the area around the panel, or if removing power takes out most of the lighting that otherwise would help you see what you are doing, a flashlight will be useful.
- Label and Verify: Never trust what the labels inside the panel door say. It is pretty common to find mislabeled circuits. Use a circuit tester to make sure the energy is indeed off to the circuit you are going to work on.
- Call an Expert When in Doubt: If you are unsure or uncomfortable with this work, then your best bet should always be to consult with a certified electrician. They have the expertise and proper tools for safely resolving electrical issues.
What's Needed and Each Step to Follow?
Knowing how to shut off your power safely is an important topic. This part will walk you through turning off the main breaker, a branch circuit breaker, the main disconnect in a fuse panel, and removing branch circuit fuses.
How to Turn off the Main Breaker
Find the main service panel: It's usually in the basement/garage/utility room. Ensure the surrounding area is dry and well-lighted on all corners.
- Open the Panel Door: Your service panel is covered with a metal opening. You want to open that doorway now. If your panel's area is dark, get ready with a flashlight. This is pivotal as this would have been turned off when you shut off the primary breaker.
- Identify the Main Circuit Breaker: This usually is a large, 240-volt breaker. You'll find it at the top or bottom of the panel. Most often, it's labeled as its amperage rating. A good example is 100 amps, 150 amps, etc.
- Switch Off the Main Breaker: Move the toggle lever to the "OFF" level. In doing so, it will cut off the energy supply to individual circuits within the house.
- Test for Power: Utilize a non–contact circuit tester to verify no energizing of any outlets or circuits in the home.
- Restoring Power: After completing your work, you can now activate the energy. You can do this by pushing the primary breaker toggle lever to the "ON" mark. It's recommended to turn off all branch circuit breakers before turning on the primary breaker. This is crucial to avoid a energy surge, then turn each branch circuit breaker on one by one.
How to Turn off a Branch Circuit Breaker
- Find the Service Panel: Open the door to the panel and locate, based on the applied diagram or labels that may be on it, the circuit breaker for the specific circuit you want to shut off.
- Identify the Right Breaker: Identify which breaker it is by reading labels or an index.
- Verify with a non-contact circuit tester. Switch off the circuit breaker by moving the toggle lever on the branch circuit breaker to the "OFF" position. Frequently, one should be able to tell if a breaker is turned off by an audible click, and with others, a red or orange tab will appear.
- Test for Power: Using a circuit tester, read several outlets on the circuit to verify the power is off.
- Restoring Power: Once your work is complete, return the breaker toggle lever to the "ON" position. Some breakers require that the lever on that breaker be pushed past the "OFF" position before being turned back to "ON."
How to Shut off the Main Disconnect in a Fuse Panel
- Locate the Fuse Panel: After this, focus on finding the fuse panel, usually located in the basement or utility room of most older homes.
- Identify the main disconnect fuse: The fuse block should be labeled "MAIN," or it will be the largest in the rating of ampere.
- Remove the Main Fuse Block: Grasp the handle on your main fuse block with one hand, then pull outward. This cuts off power to the entire house.
- Restore Power: By just pushing the main fuse block back into its slot, power will be restored. Check outlets to make sure the power is on.
How to Remove Branch Circuit Fuses
- Identify the Correct Fuse: The panel index can be used to locate the correct fuse for a circuit you want to shut off. Many open fuses will have scorch marks or a melted filament.
- Remove the Fuse: This should be done by gripping the fuse in the ceramic rim, avoiding the metal base, and twisting it. Finally, remove it entirely from the socket.
- Test for Power: Using a circuit tester, verify that the power is off to the circuit.
- Restoring Power: Screw the fuse back into its socket in one hand; if you're replacing a fuse that has blown, make sure you have another of the same type.
Emergency Home Backup Battery You Should Know
Since power outages are pretty common these days, a reliable home backup battery may become your treasure. Here are the two most recommended options in such a case:

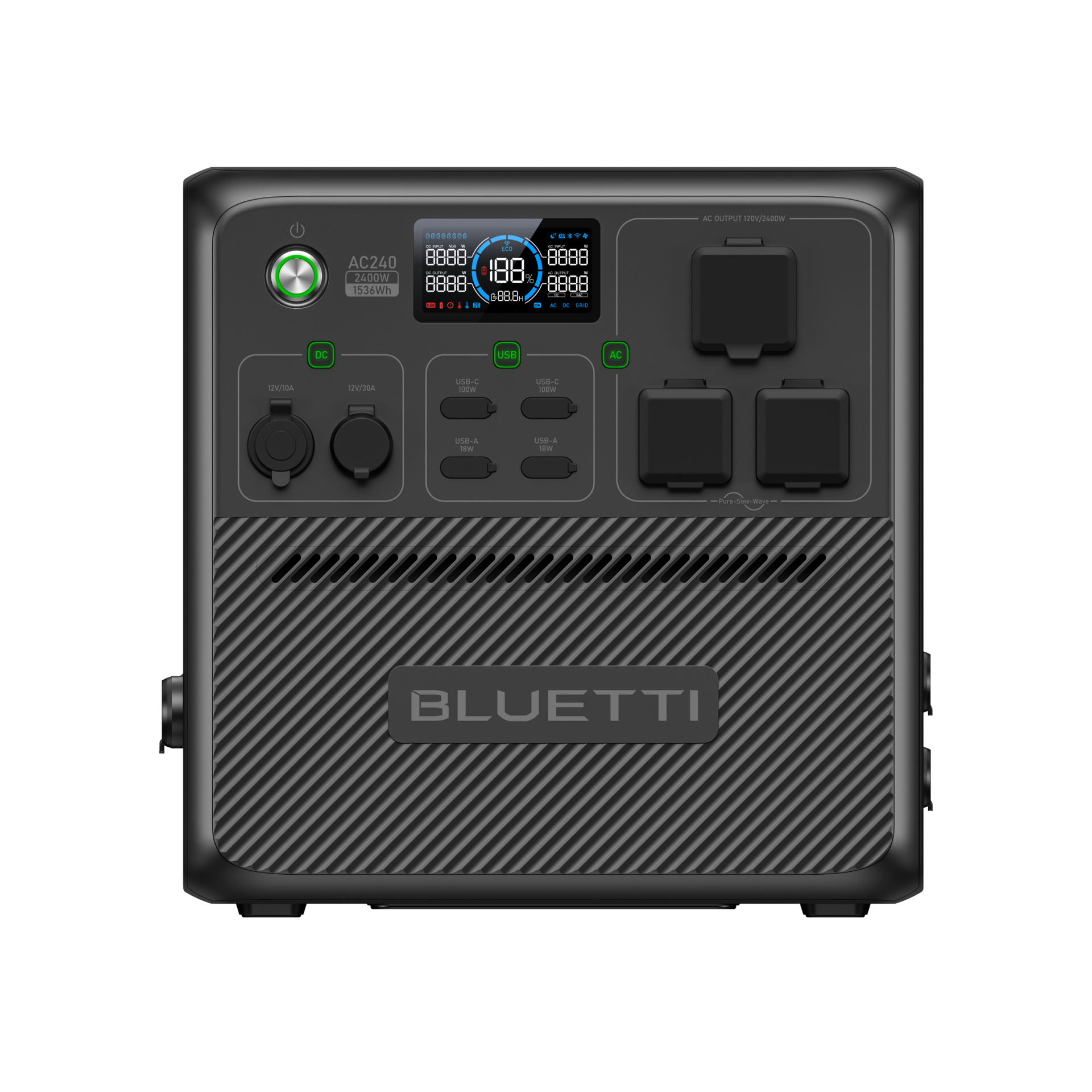

BLUETTI AC240 Portable Power Station
With its high capacity, the portable BLUETTI AC240 Power Station supports solid solutions for any emergency power requirement. It efficiently works with essential devices and appliances during an outage at 2,400W output and 1,536Wh capacity. IP65 water and dust resistance makes it very durable, and a 2,200W AC input gets it charged from 0-80% in just 45 minutes. It can be expanded to 10,136Wh with more batteries to hold more backup power. The AC240 will also endure a max solar input of 1,200W.
BLUETTI AC300 + 1*B300 Home Battery Backup
This is a comprehensive home power backup system. It has a 3,000W pure sine wave inverter and a surge capacity of 6,000W, while the rated capacity is 3,072Wh but can be expanded up to 12,288Wh. Besides, this system uses LiFePO4 batteries with more than 3,500 life cycles to 80% capacity for longevity. Moreover, it supports 240V split-phase bonding and delivers real power to larger appliances and HVAC systems. For its recharge, it has open access via seven ways: solar, dual AC, and a proprietary 24/7 UPS that provides seamless, uninterruptible backup power during outages.
Final Thoughts
To sum up, it is crucially important to control how much power your house consumes for both safety and convenience. Knowing which circuit breakers and fuses apply, observing appropriate safety measures, and following the details about switching off the power will help protect from mishaps and promote repairs. Also, the investments in a dependable home backup battery, such as BLUETTI, will ensure you are ready when the lights go out, keeping you comfortable and safe.
