Tech Specs

Specifications

Battery Info

Capacity: Works with B300s or B300, starts at 3072Wh

OUTPUT

AC Outlets: 3 x 120V/20A Outlets 1 x 120V/30A L14-30 1 x 120V/30A TT-30 1 x 120V/50A NEMA14-50 5,000W In Total Inverter Type: Pure Sine Wave Surge Power: 10,000W USB-C Port: 2 x 100W Max. USB-A Port: 2 x 5V/3A USB-A 2 x 18W USB-A 12V* DC Outlets: 1 x 12V/30A (RV Outlet) 1 x 24V/10A (Car Outlet) *All Regulated. Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

AC Input: 4,500W Max. (W/ 1*B300S), 5,000W Max.(W/ 2 or more B300S) Solar Input: 3,000W Max., VOC 12-150VDC, 12A Car Input: 12/24V from Cigarette Lighter Port Maximum Input: 6,000W (W/ 1*B300S), 8,000W(W/ 2 or more B300S) with AC and Solar Input Simultaneously

GENERAL

240V Split Phase Bonding: Yes Scalability: Expandable W/Up to 6x B300s Simultaneous Recharge & Discharge: Yes APP Control: Yes, via WiFi and Bluetooth Weight: 66.2lbs (30kg) Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm) Operating Temperature: -4-104℉ (-20-40℃) Storage Temperature: -4-104℉ (-20-40℃) Certification: UL Standard, CEC, DOE, FCC, CA Prop 65

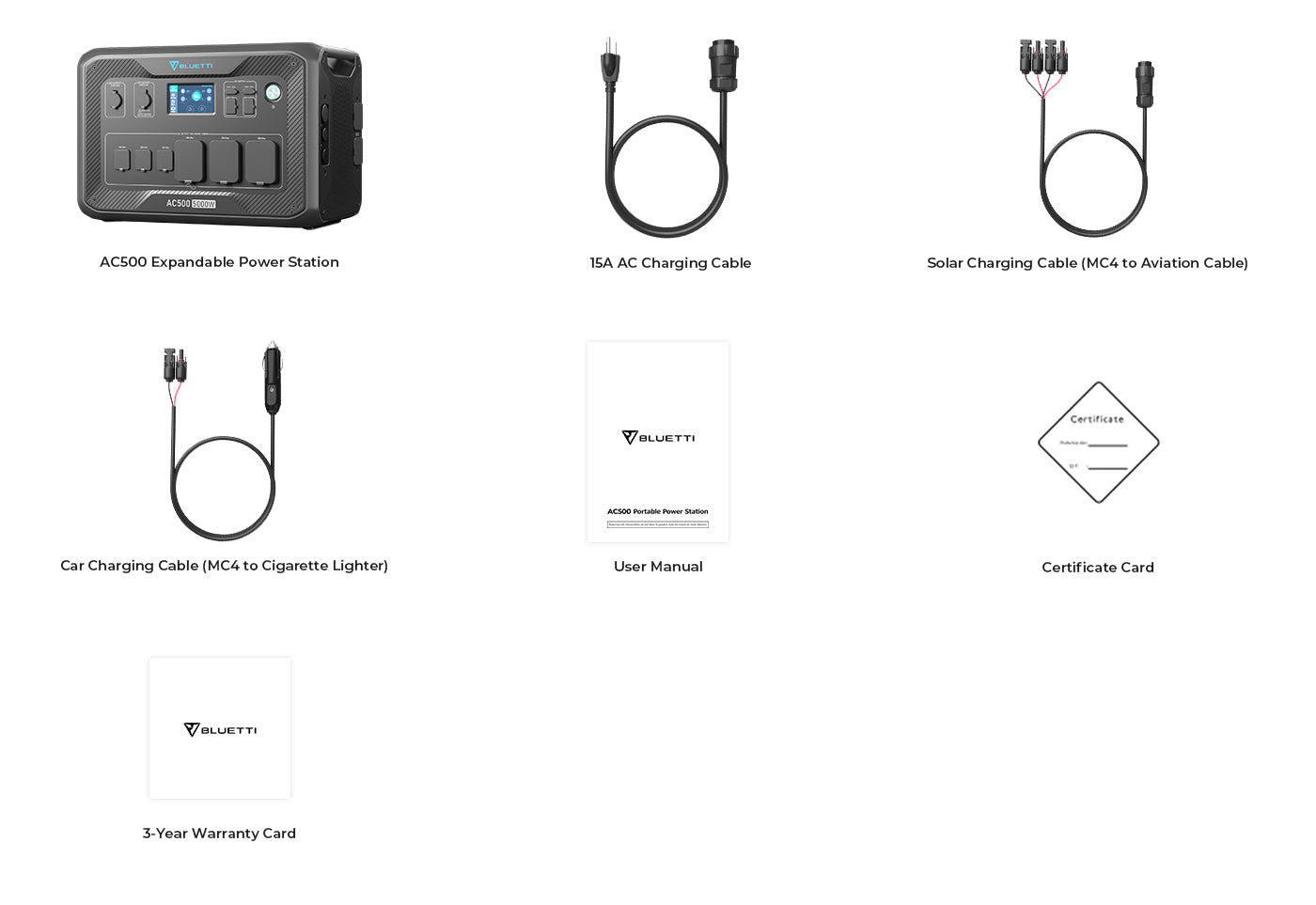

In the Box
