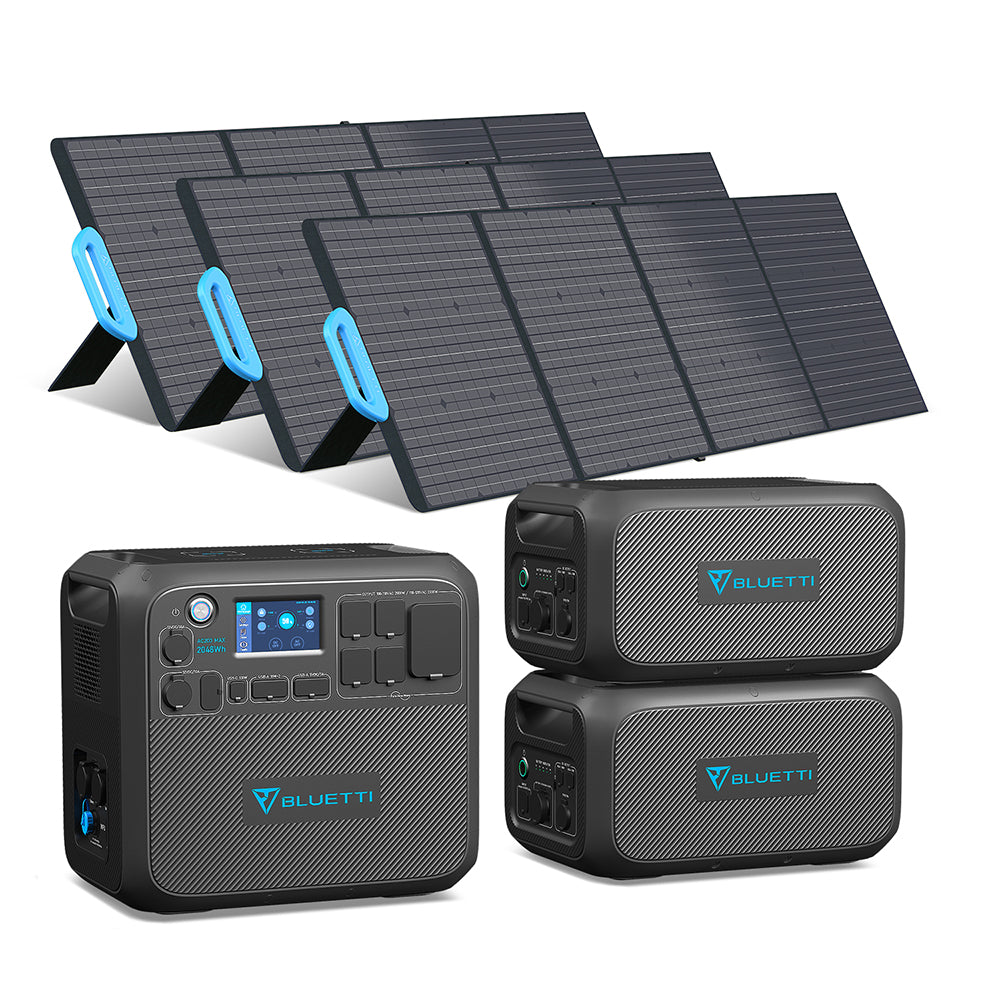

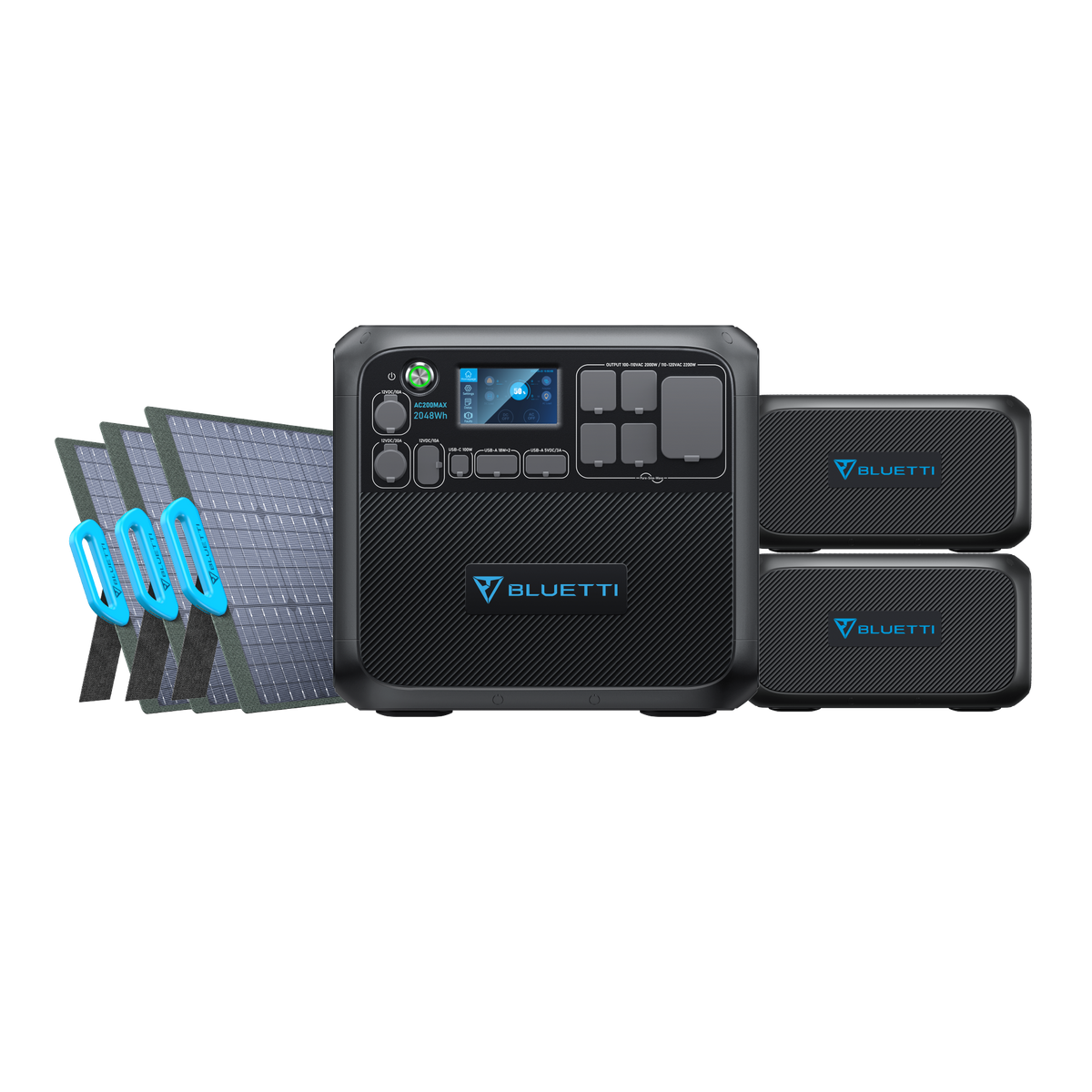

【Sold Out】BLUETTI AC200MAX + 2*B230 + 3*PV200 Solar Generator Kit

FAQS

• Q1: How many B230 or B300 battery module can be hooked up with the AC200/P?

  A:

  Up to two B230 or B300, one via the solar input port by a converter cable, and another one via the AC adapter inlet (Require the BLUETTI D050S - DC charging enhancer, sold separately).

  Friendly Note: which means that if the total power of your devices exceeds 700W.

• Q2: Can the B230 battery module be used alone?

  A:

  Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.

• Q3: What are the charging methods for the BLUETTI B230?

  A:

  B230 can be recharged by:

  1. 500W AC adapter (Sold separately)

  2. Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).

  Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.

• Q4: Does AC200MAX support split phase bonding?

  A:

  No.

• Q5: Can AC200MAX be remotely controlled via APP?

  A:

  ou can control the AC200 MAX via APP or touchscreen. But APP only can be connected via Bluetooth.

• Q6: How many B230 or B300 battery module can be charged with AC200MAX?

  A:

  Up to two B230’s or B300 battery modules

• Q7: What are the charging methods for AC200MAX？

  A:

  • 1. Wall outlet (AC adapter): MAX.500W, fully recharge in 4.6~5.1hrs.
  • 2. Dual AC Adapters: MAX.1000W, fully recharge in 2.5~3.0hrs.
  • 3. Solar Panels: MAX.900W, Open circuit voltage range: 10V~145V; fully recharge in 2.8~3.3hrs. (Doesn’t work with roof solar array with total Voc higher than 145V)
  • 4. Solar Panels & Wall Outlet simultaneously: MAX.1400W (500W from AC adapter, 900W from solar panels), fully recharge in 2~2.5hrs
  • 5. 12V/24V Car Cigarette Lighter
  • 6. 12V/24V lead-acid Battery
  • 7. EV Charging Station (EV adapter sold separately)
  • 8. Generator
  • 9. BLUETTI Wind Turbine (In progress)

• Q8: Does AC200MAX have UPS function？

  A:

  No.

• Q9: Can AC200MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

  A:

  YES.

• Q10: Is the solar charge controller mode MPPT or PWM?

  A:

  MPPT.

• Q11: Can I use third party solar panel and what conditions need to be met?

  A:

  Yes, you can. The solar array must meet the following conditions:

  1. Total open circuit voltage(Voc) falls in the range of 10-145V/MAX.12A, MC4 connectors

• Q12: Can you ship the AC200MAX to Puerto Rico, Hawaii and Alaska deliver ?

  A:

  Can not. Because the package exceed the weight limit of the logistics company.
